Cut to Length Machine
01
High-Strength Steel Sheet Coil Cut-to-Length Line
Unmatched Efficiency and Control
-
Precision Uncoiling and Leveling:The line boasts a robust design equipped with high-performance components to ensure smooth, accurate uncoiling and precise leveling of even the most challenging materials.
-
Advanced PLC Control: Featuring imported PLC program controllers and intuitive touchscreens, the system offers comprehensive control over the entire cut-to-length process, maximizing efficiency and minimizing operator intervention.
-
Reliable DC Leveling Drive:A powerful DC motor provides the driving force for the leveling process, guaranteeing consistent and reliable performance across a wide range of material thicknesses.
Exceptional Cut Quality and Flexibility
-
High-Precision Shearing:The line utilizes a high-precision shearing mechanism, delivering clean, burr-free cuts with exceptional dimensional accuracy.
-
Optional Trimming Functionality: For enhanced versatility, the line can be equipped with an optional trimming function, allowing for precise edge trimming to meet specific requirements.
Designed for User-Friendliness and Long-Term Reliability
-
Simplified Operation and Maintenance:The system is designed for intuitive operation and ease of maintenance, minimizing downtime and maximizing operator productivity.
-
High-Quality Hydraulics: The hydraulic system incorporates high-precision components sourced from Taiwan, ensuring optimal performance and reliable operation over an extended service life.
Invest in Unparalleled Cut-to-Length Performance
- This cut-to-length line is the ideal solution for manufacturers seeking exceptional precision, efficiency, and versatility in their operations.
Key Features
- Processes hot-rolled steel coils, stainless steel coils, and thick plates
- High-precision uncoiling and leveling
- High-precision uncoiling and leveling
- High-precision uncoiling and leveling
- High-precision uncoiling and leveling
- High-precision uncoiling and leveling
Parameter Table
Item |
DS3×1600 |
DS6x2000 |
DS8×2000 |
DS10×2200 |
DS12×2200 |
DS16×2200 |
DS20×2500 |
DS25×2500 |
Thickness Range (mm) |
0.3-3 |
1-6 |
2-8 |
2-10 |
3-12 |
4-16 |
6-20 |
8-25 |
Width Range (mm) |
1600 |
2000 |
2000 |
2200 |
2200 |
2200 |
2500 |
2500 |
Cutting Length (mm) |
300-4000 |
500-6000 |
600-8000 |
600-10000 |
800-12000 |
800-12000 |
800-12000 |
800-12000 |
Cutting Precision (mm) |
±0.5 |
±0.5 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
Roller Numbers |
15 |
15 |
13 |
13 |
11 |
11 |
9 |
9 |
Roller Diameter (mm) |
Φ85 |
Φ140 |
Φ155 |
Φ160 |
Φ180 |
Φ200 |
Φ230 |
Φ260 |
High-Precision Cut-to-Length Lines for Hot Rolled Steel Coils
Key Components
- Coil Car: Ensures consistent material flatness for precise cutting.
- Double Support Uncoiler: Ensures smooth and controlled unwinding of the coil material.
- Hydraulic Pressing and Guiding System: Maintains precise alignment and tension throughout the processing stages.
- Shovel Head: Guides the leading edge of the strip into the processing line.
- Pre-Leveler and Finishing Leveler: Work in tandem to remove any residual coil set and ensure a flat, uniform product.
- Cut-to-Length Machine: Utilizes advanced technology to deliver accurate and clean cuts to your specified lengths.
- Stacker: Automatically stacks the finished cut-to-length plates for efficient handling and storage.
- Integrated Control Systems: Comprised of both advanced electrical and hydraulic systems for optimal performance and control.
- Optional Equipment: Pendulum middle plate and steering device can be incorporated for tailored line configurations.
Benefits
-
High Precision Cutting:
Achieves accurate and consistent cut lengths. -
Efficient Processing: Optimizes production output with a streamlined workflow.
-
Versatility:Accommodates a wide range of HR coil thicknesses.
-
Advanced Automation: Minimizes human intervention for improved safety and efficiency.
-
Durable Construction: Ensures long-lasting performance and reliability.
Contact Us
This cut-to-length line series is a valuable asset for manufacturers requiring high-quality, precisely cut HR steel plates. Contact us today to learn more about how this system can enhance your metal processing capabilities!
description2

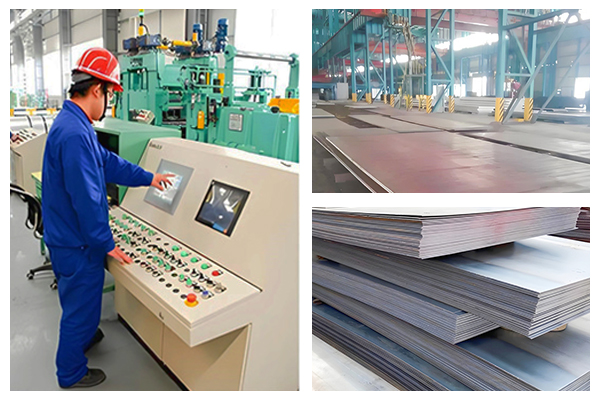

Display Pictures
