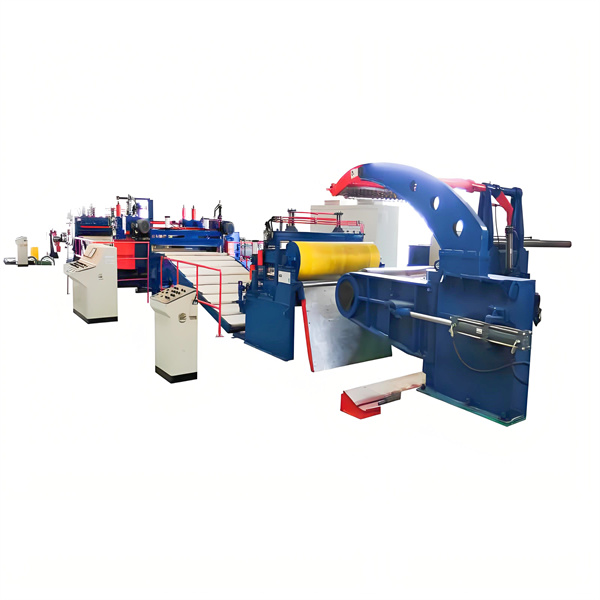

Slitting Machine

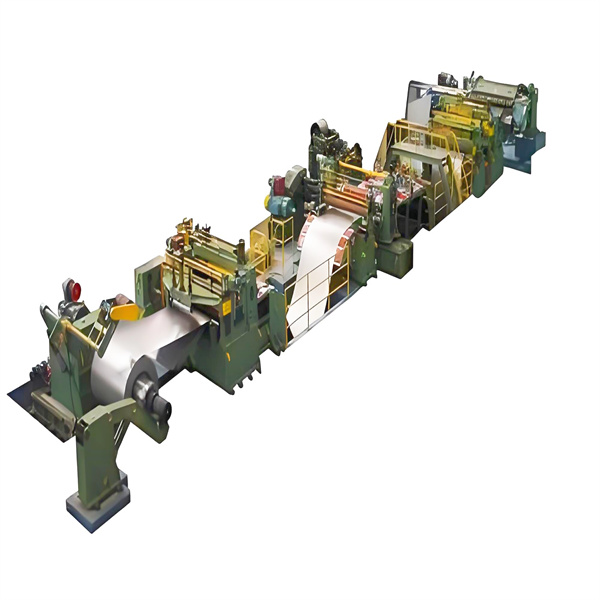

High Speed Uncoiling - Slitting - Rewinding Line
Compatible Materials
- Cold rolled coils (CR)
- Hot rolled coils (HR)
- Silicon steel
- Stainless steel (S.S)
- Pre-painted steel (Color steel)
- Aluminum (AL)
- Pre-painted galvanized steel (PPGI)
Comprehensive Line Components
Coil car & uncoiler |
Looping pit |
Guiding & pinch device |
Tensioner |
Slitter head |
Scrap winder |
Edge guiding device |
Recoiler |
Recoil car |
Product Advantages
- Unmatched Versatility:
Handles a broad spectrum of materials and thicknesses.
- Customizable Configurations:
Tailored to your specific production needs.
- Efficient Slitting:
Precise cuts for consistent strip quality.
- Reliable Performance:
Minimized downtime and maximized productivity.
Parameter Table
Item |
DS-1.5 |
DS-2.0 |
DS-3.0 |
DS-4.0 |
Material Thickness (mm) |
0.2~1.5 |
0.2-2.0 |
0.3-3.0 |
0.5-4.0 |
Material Width Range (mm) |
750-1300 |
1600-1800 |
1800-2000 |
200-1600 |
Slitting Strips |
2-20 |
2-20 |
2-15 |
2-15 |
Product Precision (mm) |
±0.1 |
±0.1 |
±0.15 |
±0.15 |
Linear Speed (mm) |
10-200 (250) |
10-200 (250) |
10-150 (200) |
10-150 (200) |
Coil Weight (T) |
10 |
15 |
20 |
25 |
ID (mm) |
Φ508 & Φ610 |
Φ508 & Φ610 |
Φ508 & Φ610 |
Φ508 & Φ610 |
OD (mm) |
Φ508 |
Φ508 |
Φ508 |
Φ508 |
Blade Shaft (mm) |
Φ205 |
Φ220 |
Φ240 |
Φ240 |
Achieve Unmatched Precision and Efficiency with Our High-Performance Slitting Line
This state-of-the-art steel coil slitting line delivers exceptional performance and unmatched versatility for a wide range of metals. Our meticulously engineered system incorporates a series of seamlessly integrated modules, including:
- Automated Uncoiler:
Facilitates efficient material loading and ensures smooth feeding of the steel coil.
- Pinch and Primary Straightening:
Precisely removes any residual coil set, guaranteeing consistent strip flatness.
- High-Precision Slitting:
State-of-the-art cutting technology delivers clean, burr-free edges for optimal product quality.
- Advanced Tension Control System:
Maintains consistent material tension throughout the process, ensuring precise strip width and minimal waste.
- Automated Recoiling:
Efficiently rewinds the slit strips into manageable coils for easy handling and storage.
Following the final recoiling stage, the finished coils are securely packaged and transported out of the production line using a dedicated unloading trolley. This comprehensive system streamlines the entire slitting process, maximizing productivity and minimizing downtime.Experience the difference with our industry-leading slitting line. Contact us today to learn more about how this innovative system can elevate your metal processing capabilities.
Unmatched Versatility and Precision: Our 0.2-4.0mm High-Performance Slitting Line
Following the final recoiling stage, the finished coils are securely packaged and transported out of the production line using a dedicated unloading trolley. This comprehensive system streamlines the entire slitting process, maximizing productivity and minimizing downtime.Experience the difference with our industry-leading slitting line. Contact us today to learn more about how this innovative system can elevate your metal processing capabilities.
Unparalleled Material Handling
Experience the Difference
Our high-performance slitting line empowers you to achieve superior production efficiency and product quality. With its unmatched versatility and precision, this machine becomes a cornerstone for diverse metal processing operations.
description2

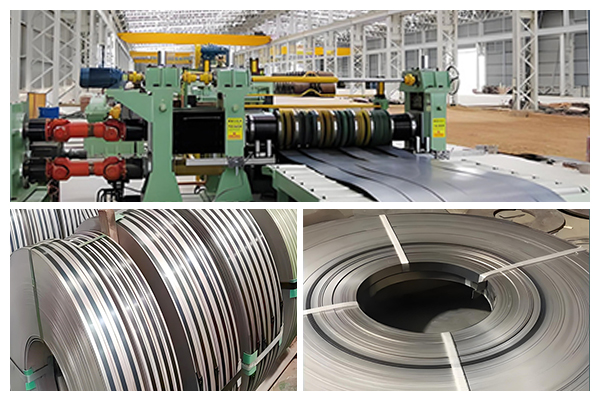

Diaplay Pictures
